Pneumatic Conveying Pump: An Efficient and Reliable Material Handling SolutionProduct Overview

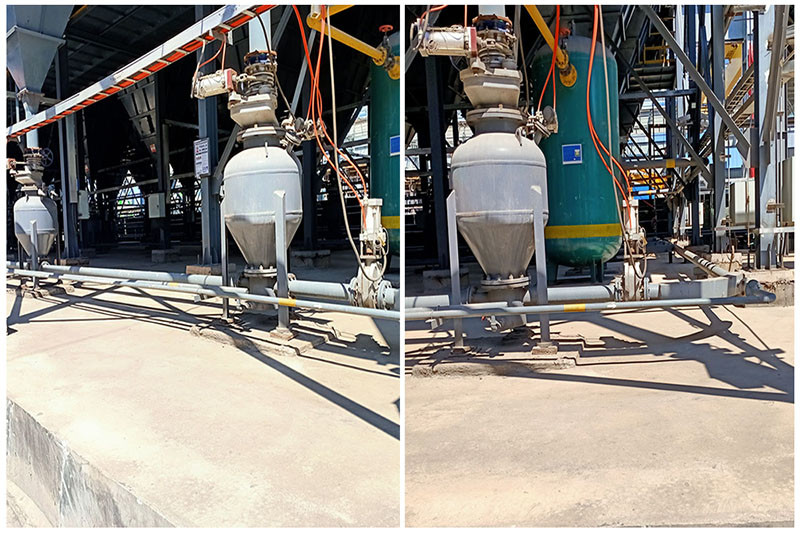

The pneumatic conveying vessel pump utilizes positive pressure pneumatic conveying technology, specifically designed for the efficient transportation of powdered materials. Whether handling fly ash from power plants, cement, cement raw meal, or mineral powder, it delivers exceptional performance.
With flexible pipeline layout options, it adapts to complex terrain conditions, enabling centralized, decentralized, high-elevation, and long-distance conveying tasks. The conveying process remains unaffected by environmental factors, ensuring materials stay dry and contamination-free.
An ideal choice for modern industrial material handling, it guarantees reliability, efficiency, and cleanliness in every operation.
Key Features Highlighted:
* Wide Material Compatibility – Efficiently conveys fly ash, cement, raw meal, mineral powder, and more.
* Terrain Flexibility – Adaptable pipeline layout for challenging environments.
* Weather-Resistant Operation – Uninterrupted performance under varying natural conditions.
* Contamination-Free – Maintains material dryness and purity throughout transportation.

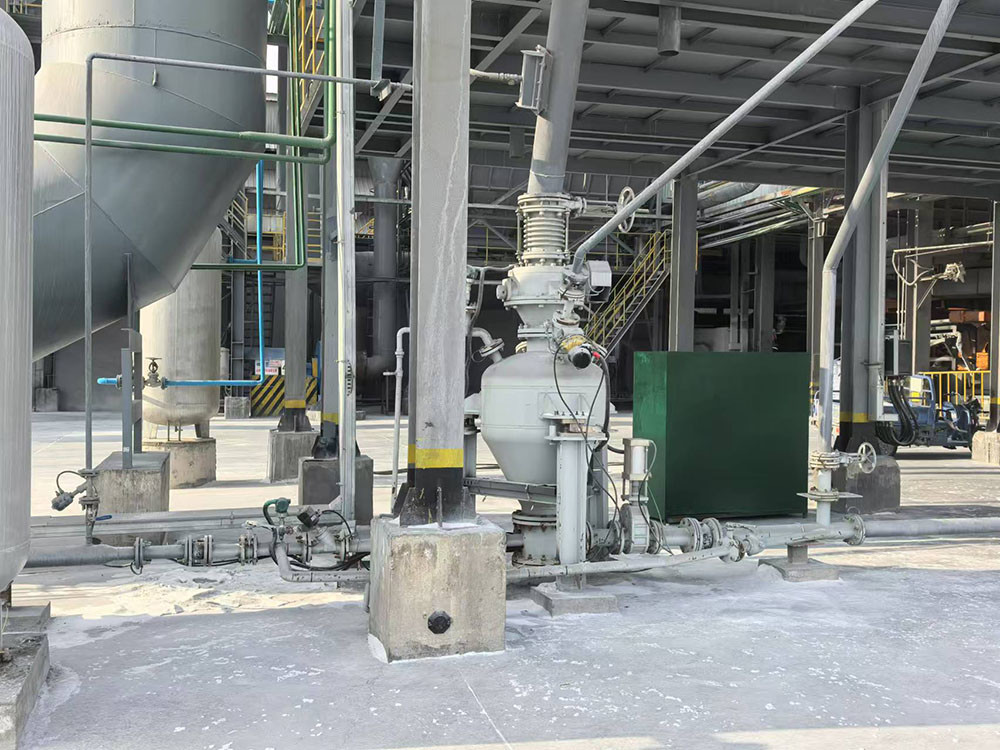

Working Principle
The pneumatic conveying silo pump operates based on the principle of positive - pressure pneumatic conveying. The working process can be divided into the following steps:
Filling Phase: First, the inlet valve and exhaust valve of the silo pump are opened. The pump is filled with materials under normal pressure until the level gauge indicates that the silo is full.
Pressurization Phase: After filling, the inlet valve and exhaust valve are closed, and then the high - pressure air valve is opened to pressurize the inside of the tank.
Conveying Phase: When the operating pressure is reached, the conveying air valve and discharge valve are opened. The pressurized air pushes the materials in the silo pump into the conveying pipeline, and the materials are transported to the designated location.
Emptying and Depressurization Phase: Once the conveying is completed, as indicated by the pressure switch, level gauge, or time relay, the high - pressure air valve and discharge valve are closed. All the compressed air is used to clean the conveying pipeline. At the same time, the exhaust valve is opened to reduce the pressure in the tank to normal pressure, completing one working cycle.
Large Capacity Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m³) | Model | PCD24/H | PCD26/H | PCD28/H | PCD30/H | Conveying Distance |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) |
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 50~80 | 60~90 | 65~110 | 80~130 | 200 | 20 |
| Fly Ash | 0.75 | 75~125 | 85~130 | 95~160 | 125~190 | 200 | 20 |
| Limestone Powder/Mineral Powder | 0.8 | 80~130 | 90~140 | 100~170 | 130~200 | 200 | 20 |
| Cement/Raw Meal | 1 | 100~150 | 115~175 | 130~215 | 165~260 | 200 | 20 |
Long-distance Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density (t/m3) | Model | PCD24/L | PCD26/L | PCD28/L | PCD30/L | Conveying Distance |
| Specification | 16~20m3 | 18~22m3 | 20~27m3 | 26~32m3 | Level (m) | Level (m) |
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 20~40 | 25~45 | 30~55 | 45~65 | 1000 | 25 |
| Fly Ash | 0.75 | 35~60 | 45~65 | 45~80 | 65~95 | 1000 | 25 |
| Limestone Powder/Mineral Powder | 0.8 | 40~65 | 45~70 | 50~85 | 70~100 | 1000 | 25 |
| Cement/Raw Meal | 1 | 50~80 | 55~90 | 65~110 | 90~120 | 1000 | 25
|
Conventional Grid Pneumatic Conveying Bin Pump Parameter Table
| Conveying Material | Bulk Density(t/m³) | Model | PCD18/N | PCD20/N | PCD20/N | Reference Conveying Distance |
| Specification | 5.0~6.7m³ | 7.0~10.0m³ | 10.0~15.0m³ | Level (m) | Vertical (m) |
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 12~20 | 16~32 | 25~50 | 500 | 30 |
| Fly Ash | 0.75 | 18~32 | 25~48 | 35~70 | 50 | |
| Limestone Powder/Mineral Powder | 0.8 | 20~35 | 26~51 | 38~75 | 500 | 30 |
| Cement/Raw Meal | 1.0 | 24~42 | 32~65 | 48~95 | 500 | 30 |
| Silicon Powder | 1.2 | 28~50 | 40~75 | 55~115 | 500 | 30
|
Parameter Table Of Small Size Pneumatic Conveying Bunker Pump
| Material | Bulk Density(t/m³) | Model | PCD08/M | PCD10/M | PCD12/M | PCD14/M | Reference Conveying Distance |
| Specification | 0.2~0.5m³ | 0.6~1.6m³ | 1.5~2.5m³ | 2.5~5.0m³ | Level (m) | Vertical (m) |
| Pulverized Coal | 0.5 | Delivery Volume (t/h) | 0.5~1.8 | 1.5~5.5 | 5.0~9.0 | 8.0~18.0 | 100 | 20 |
| Fly Ash | 0.75 | 0.9~2.8 | 2.5~8.5 | 7.0~14.0 | 12.0~27.0 | 100 | 20 |
| Limestone Powder/Mineral Powder | 0.8 | 1.0~3.0 | 3.0~9.0 | 8.0~15.0 | 12.0~28.0 | 100 | 20 |
| Cement/Raw Meal | 1.0 | 1.2~3.5 | 3.5~11.5 | 10.0~18.0 | 16.0~36.0 | 100 | 20 |
| Silicon Powder | 1.2 | 1.5~4.0 | 4.5~13.5 | 12.0~20.0 | 19.0~43.0 | 100 | 20 |
